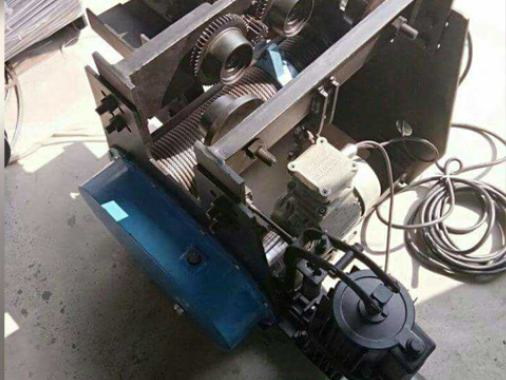

FLAME PROOF HOIST
Stalmac Flame proof hoist provides a unique solution for applications that require hygiene and safety.
Electrical equipment of the Stalmac Flame Proof hoists has a high standard of protection . This is particularly important in outdoor applications or when dust is the inflammable substance. Critical or Important components like motors are well covered due to excellent Stalmac design. This prevents the build up of dust on the components and helps to keep the surfaces clean.
We make Flame Proof Hoists (Explosion Proof Hoists) confirming as per IS-2148 especially suitable for the hazardous conditions and available for Gas Group I, II A, II B, II C.
APPLICATIONS
- Oil Warehouses
- Mine Quarries
- Chemical Plant
- Gas Power Plants
- Petrochemical Factory
- Oil Refineries
- Waste Water Treatment Plants
Classification
Group I, Group II & Group III
Hazardous Zone
Zone 0, Zone 1 & Zone 2
Gas Group
IIA, IIB & IIC
Product Features
- Rugged construction conforming to IS 3938
- Shafts mounted on anti friction bearings
- Totally enclosed gearbox with precision machine cut gears and pinions
- Rope drums made from seamless pipe
- The Drum Shaft has ball bearings to ensure smooth running with gears fitted on anti-friction ball bearings in oil bath lubrication
- The Rope Guides are attached to prolong rope life
- The Motor confirms as per IS-325
- Assembly facilitating easy maintenance
- Disc type/Shoe type Electromagnetic brakes for hoisting motion
- Limit switches for upper and lower limits for safe operation
- Safety latches on hook
- Hook supporting on thrust bearings for 360 Degree.Confirm as per IS-15560 or equivalent
- Micro speed for hoisting and cross travel shall be provided if required
Product Range
Capacity | Height of lift | Class Class II |
---|---|---|
250 kgs to 25 TON | 50 Mtr | 2Heavyduty / Flamproof |
